PDT9

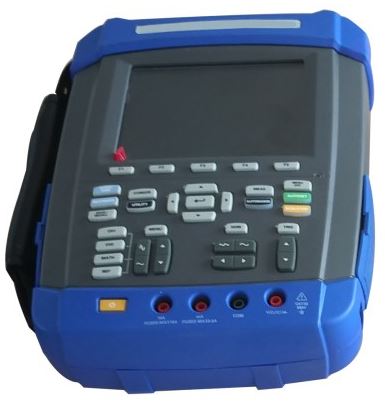

PDT9 handheld PD tester is our technical teams throughout years of detection
experiences of high-voltage equipment partial discharge online detection and
positioning.

The system is equipped with composite TEV sensors, UHF sensor, high-frequency
current transformer and high sensitivity ultrasonic sensors to collect high voltage
equipment internal partial discharge signal. With the feature a multi-level detection
frequency reduction technique it could reduce the discharge frequency of the signal,
while using digital high-speed AD conversion circuit to complete the signal, and
through digital signal processing, adaptive filtering.

It’s equipped with interference signal processing mode to ensure the reliability of the
monitoring data. Through different signal acquisition of the partial discharge of high
voltage equipment can produce different charged fast detection condition of the
equipment. The equipment can be installed in the detection of the running state of the
equipment, the normal operation of the equipment does not have any effect, evaluation
for the staff in a timely manner on the switch cabinet the running state, greatly
improving the reliability of equipment, safety and effectiveness.
